Description:

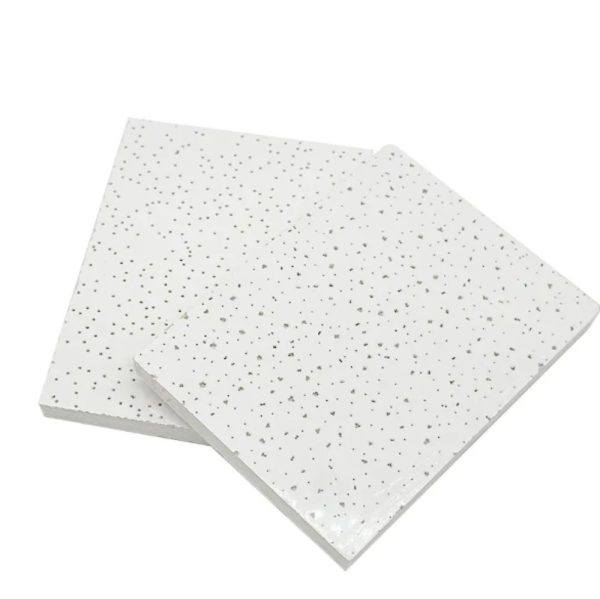

Mineral Fiber Ceiling is The high-quality mineral wool and composite fiber as the main raw materials and adding other additives, comes out under high pressure steaming and cutting.It has good fire and sound absorption performance, and has superior performances such as non-combustibility, heat insulation, sag resistant, mold-proof, environmental protection. Extensively used for indoor ceilings in office, airport, restaurant, petrol pump and hotel.
Specification:

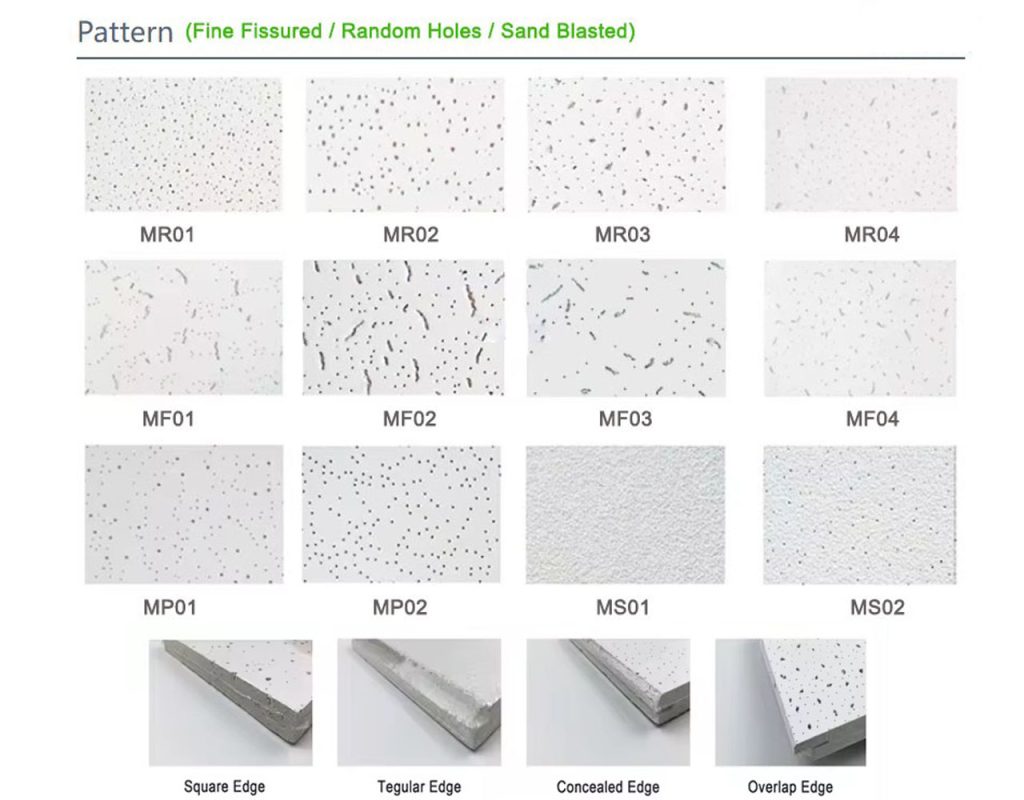

| Edge | Square | Tegular | Concealed | Overlap |
| Size(mm) | 300*600/600*600/600*1200
Metric/Imperial Sizes Available |
|||
| Thickness(mm) | 6.5~20 | 12~20 | 12~20 | 12~20 |
| Application | All Series | Fine Fissured/Random Holes/Sand Blasted/Excellence | ||
Technical Data:
| Item | Unit | Standard Value | Test Value |
| Material | / | / | Wet-Formed Mineral Fiber |
| Surface Finish | / | / | Factory-Applied Vinyl Latex Paint |
| Density | Kg/m3 | ≤500 | 280-320 |
| Water Content | % | ≤3 | 1 |
| Moisture Deflection | Mm | ≤3.5 | 2.8~0.8(thickness 12-18mm) |
| Thermal Conductivity | W/m·k | ≤0.065 | 0.0475 |
| Noise Reduction Coefficient (NRC) | / | / | 0.48-0.66 |
| Flexural Strength | N | ≥50 | 196 |
| Ceiling Articulation Class (CAC) | dB | / | Minimum30 |
| Light Reflectance | / | / | Minimum LR0.80 |
| Incombustibility | Class | GB6566-2001 Class A | GB6566-2001 Class A |
| RH Performance | Relative Humidity up to 80%-90% | ||
